FM-A2701D FM-A2701DS

FM-A2701D and FM-A2701DS medical grade monitors are ideal for applications where high brightness high color saturation and super wide viewing angles are important.

在线订购
产品详情
产品说明

27” 4K Medical Display4K  1.jpg

FM-A2701D FM-A2701DS

FM-A2701D FM-A2701DS  3.png

FM-A2701D and FM-A2701DS

medical grade monitors are ideal forapplications where high brightness, high color saturation, andsuper wide viewing angles are important. 4K UHD resolutiondelivers 4 times more pixels than a full HD display. This meansthat during surgery fine details ecome sharper and easier to identify.

Screen Layout Control

FSN’s OSD menu options have been designed to offer popular layout selections when two video signals are connected. Images can be viewed as picture-in-picture or picture-by-picture. They can be swapped, re-sized, or moved to a different position on the screen. Combined with its wide viewing angle, this monitor has the visualization features required in today’s operating rooms.

FM-A2701D FM-A2701DS  1.png



Connectivity

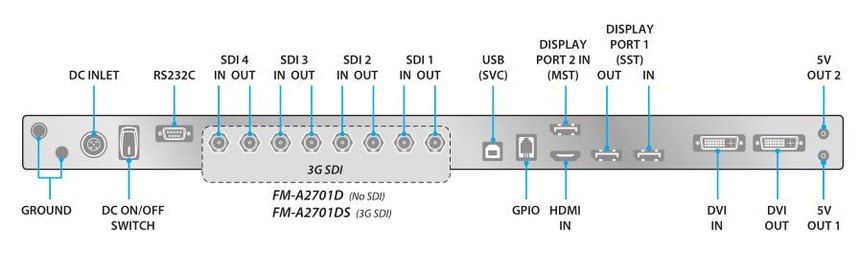

FM-A2701D has video connections for HDMI, DisplayPort, and DVI. FM-A2701DS adds support for 3G SDI, which offers quad link formats as 2-sample interleave or square division, giving it an impressive selection of signal input capabilities. Like all FSN monitors, these models are designed for fast detection of incoming video, thanks to robust mode tables.

OR-Friendly Design

The fanless housing design and edge-to-edge front glass allows this display to offer an ingress protection rating of 31. This means that potential dust and liquid entry points have been avoided. The touch menu controls are conveniently located in the lower right corner. Rounded bezel corners guard against accidental contact injuries when boom arm mounted in the operating room at head level.

27  4K.jpg



产品参数
Item Description
Panel 27 inch TFT LCD (LED)
Resolution 3840 x 2160 pixel
Aspect Ratio 16:9
Active Area 596.74 (H)mm x 335.66   (V)mm
Pixel Pitch   (mm)  0.1554 x 0.1554
Response Time   (typical) 14 ms (gray to gray)
Number of   Colors 1.07 Billion
Brightness   (typical)  800 cd/m2
Contrast Ratio   (typical) 1000:01:00
Surface   Treatment  Anti-glare
Viewing Angle   (CR>10) R/L 178°, U/D 178°
Input Signal

1x HDMI 2.0  1 x DP 1.2 (MST)

1 x DP 1.2 (SST)  1 x DVI (single Link)

4 x SDI (3G) available only on FM-A2701DS

Output Signal

1x DVI singleLink)

1 x DP 1.2 (SST)

4 x SDI   (3G) available only on FM-A2701DS
